Priefert Cattle Guards
Item # cat10

Priefert Cattle Guards

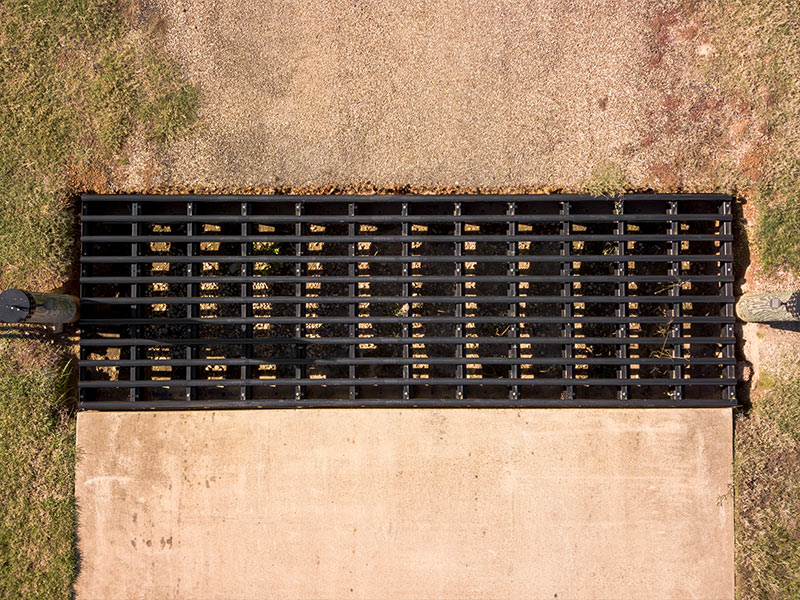

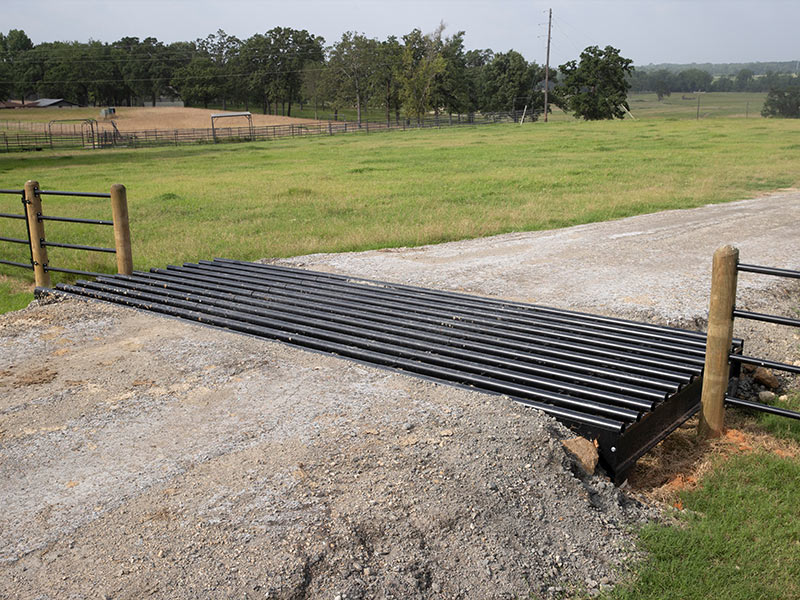

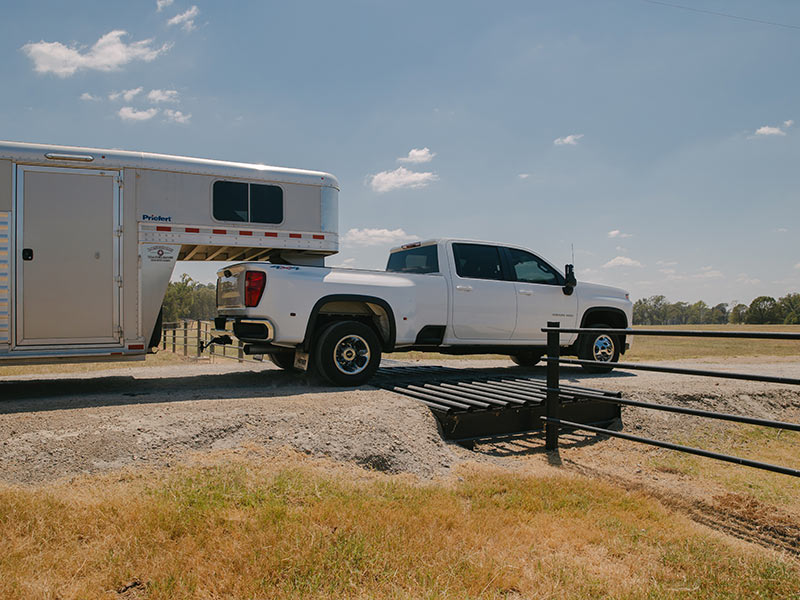

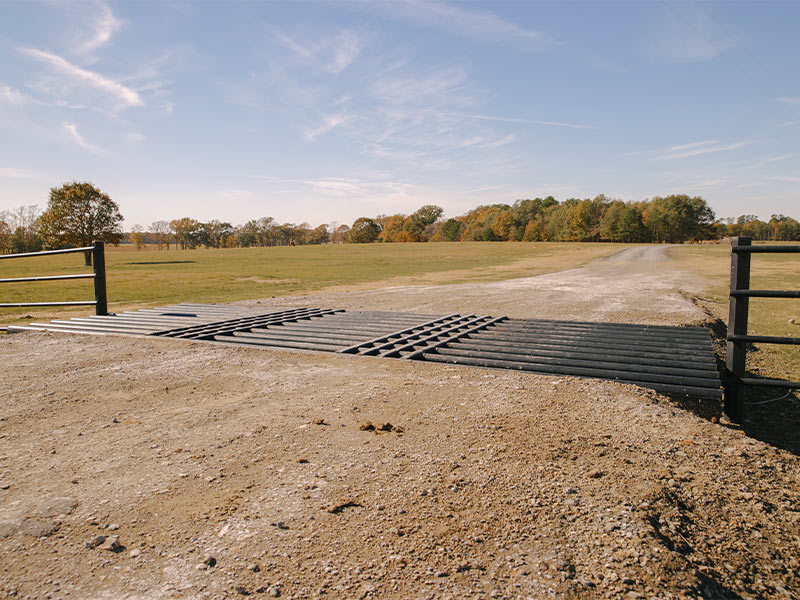

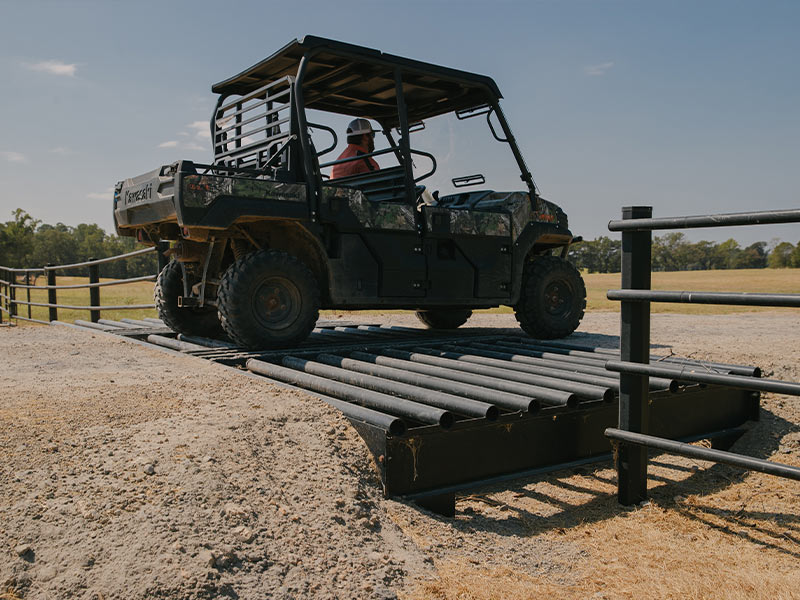

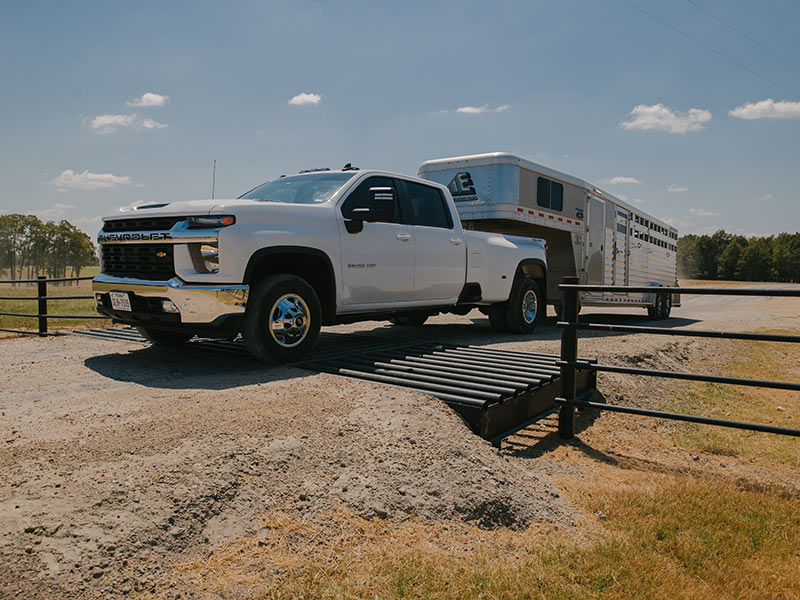

Priefert’s Cattle Guards are designed to be placed in fence lines in place of a gate to allow for easy drive thru access while still safely containing cattle.

← Back to Products
Description
Priefert’s Cattle Guards are designed to be placed in fence lines in place of a gate to allow for easy drive thru access while still safely containing cattle. These “set-in-place” cattle guards require no concrete footing for installation and are cambered to better match the crown of most roads. With a variety of size options in our Medium and Heavy Duty models, Priefert Cattle Guards are able to handle multiple load ranges and diverse applications.
Product Options
ITEM WIDTH LENGTH HEIGHT CAMBER RISE WEIGHT Quantity Add to Quote
CAT1012 8' - 1/16' 12' - 1 1/16' 21 1/16' 1 1/4' 1,838 lb
CAT1014 8' - 1/16' 14' - 1 1/16' 21 1/4' 1 7/16' 2,123 lb
CAT1016 8' - 1/16' 16' - 1 1/16' 21 1/2' 1 11/16' 2,408 lb
CAT1018 8' - 1/16' 18' - 1 1/16' 22 5/16' 2 1/2' 2,731 lb
CAT1020 8' - 1/16' 20' - 1 1/16' 22 5/16' 2 1/2' 3,016 lb
CAT1022 8' - 1/16' 22' - 1 1/16' 23 1/8' 3 5/16' 3,301 lb
CAT1024 8' - 1/16' 24' - 1 1/16' 23 1/8' 3 5/16' 3,585 lb
CAT9312 8' - 3/16' 12' - 1 1/8' 21 1/4' 1 1/4' 2,455 lb
CAT9314 8' - 3/16' 14' - 1 1/8' 22 3/8' 1 7/16' 2,836 lb
CAT9316 8' - 3/16' 16' - 1 1/8' 22 5/8' 1 11/16' 3,217 lb
CAT9318 8' - 3/16' 18' - 1 11/16' 23 7/16' 2 1/2' 3,647 lb
CAT9320 8" - 3/16" 20" - 1 11/16" 23 7/16" 2 1/2" 4,134 lb
CAT9322 8' - 3/16' 22' - 1 11/16' 24 5/16' 3 5/16' 4,407 lb
CAT9324 8' - 3/16' 24' - 1 11/16' 24 5/16' 3 5/16' 4,895 lb
Images
Specifications
  • CAT10 Maximum single axle weight: 16,000# (4’ Spacing)
  • CAT10 Maximum tandem axle weight: 17,000# per axle (4’ Spacing)
  • CAT93 Maximum single axle weight: 32,000# (4’ Spacing)
  • CAT93 Maximum tandem axle weight: 25,000# per axle (4’ Spacing)
Features
  • Priefert Cattle Guards adhere to AASHTO guidelines.
  • This set-in-place Cattle Guard is ideal for agriculture operations in need of containing livestock without impeding road travel.
  • No concrete footing is required for installation.
  • Metal skirting along the sides of the guard help prevent fill dirt from falling into the open space below the guard. Open ends allow for water drainage.
  • Priefert cattle guards are built with a camber to better match the crown of most roads. *Cambered installations need matching cambered ground preparation
  • 6-1/8 Rail Spacing
