Expo Stall Front - Horizontal Bar Top
Item # sfhs10pi.25

Expo Stall Front - Horizontal Bar Top

Priefert’s Expo Stall Front with a horizontal bar top features a swinging door design. The bottom portion of the stall is filled with a durable, easy to clean poly sheeting, available in your choice of .25” or .38” thickness.

← Back to Products
Description

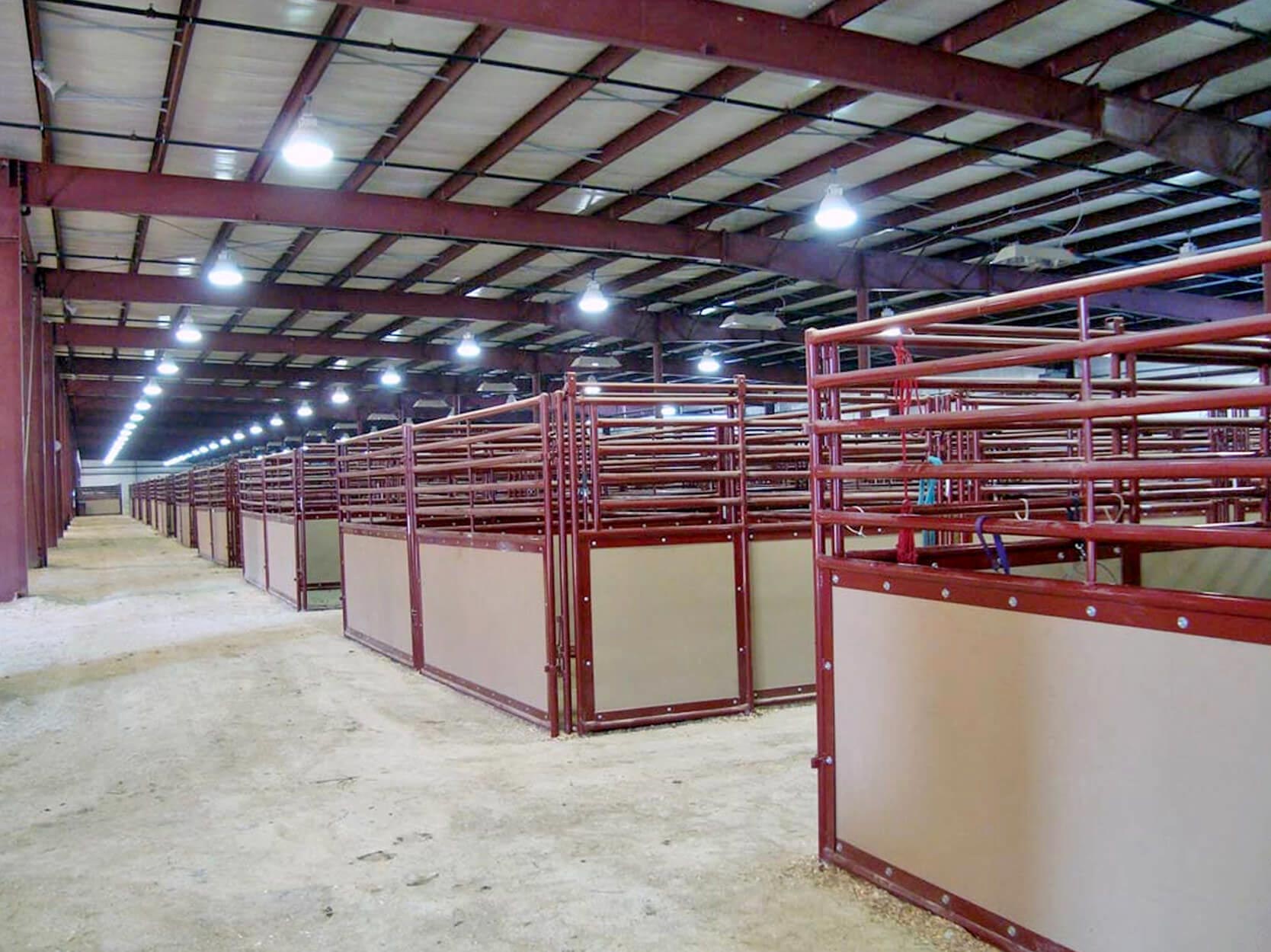

Priefert’s 10’ Expo Stalls are safe, durable, attractive, and easy to install. These stalls can be found at America’s premier fairgrounds, exposition centers, racetracks, and equestrian centers, including facilities like the Will Rogers Complex in Ft. Worth, TX and the Lazy E Arena in Guthrie, OK. Priefert Expo Stalls are used to house some of the most elite horses in the world during major events and competitions. Each stall is built to a strict standard for safety and durability. These stall frames are constructed from a combination of 14 and 16 gauge steel and feature an attractive black powder coat finish to help the stall resist rust, scratches, and fading, adding years of life to your investment. No tools are required for assembly. Our stall fronts and panels join using simple pin connectors. A starter post is required for stall setup when you are not connecting to a wall or other existing structure (starter post sold separately).

Priefert’s Expo Stall Front with a horizontal bar top features a swinging door design. The bottom portion of the stall is filled with a durable, easy to clean poly sheeting, available in your choice of .25” or .38” thickness. Each stall front also features a built-in fork well across the top of the front, making it easier to move the stall front into place using a forklift or tractor.
Product Options
Item Number Poly Thickness Weight(lbs) Quantity Add to Quote
SFHS10PI.25 .25" 289
SFHS10PI.38 .38" 299
Images
Specifications
  • Height: 90”
  • Length (pin center to pin center): 115”
  • Length (O.D.): 116.5”
  • Frame constructed from 14 gauge roll form steel & 16 ga 2” tube
  • Horizontal bar top constructed from 2” O.D. 16 gauge tubing
  • Horizontal Bar Spacing: 6” between each horizontal bar
  • Door Width: 46”
  • Architectural Grade Powder Coat Finish
  • Color: Black
Features
  • Found at fairgrounds and equestrian centers around the world, Priefert Expo Stalls are safe, durable, attractive, and easy to erect.
  • This Expo Stall Front features a horizontal bar top with a poly-filled bottom.
  • Expo Stall Fronts have a swinging door design, with a 46” wide door that is secured in place with a gravity latch.
  • Priefert’s roll form Expo Stall frames are designed to prevent the buckling of the poly by allowing it to expand and contract with temperature fluctuations while remaining securely in place within the frame.
  • Architectural Grade Powder Coat Finish with UV inhibitors add years of life to your investment by helping the product resist rust, scratches and fading.
  • No tools are required for assembling our Expo Stalls. Our Expo Stall Fronts and Panels join using drop- pin connections that are securely attached to their frame, making stall setup quick and easy.
  • A starter post (sold separately) is required for stall setup when you are not connecting to a wall or other existing structure.
  • To make moving and installation easier, Expo Stall Fronts have a “fork well” that runs across the top of the frame, providing a secure point for pickup of the stall front with a fork lift.
